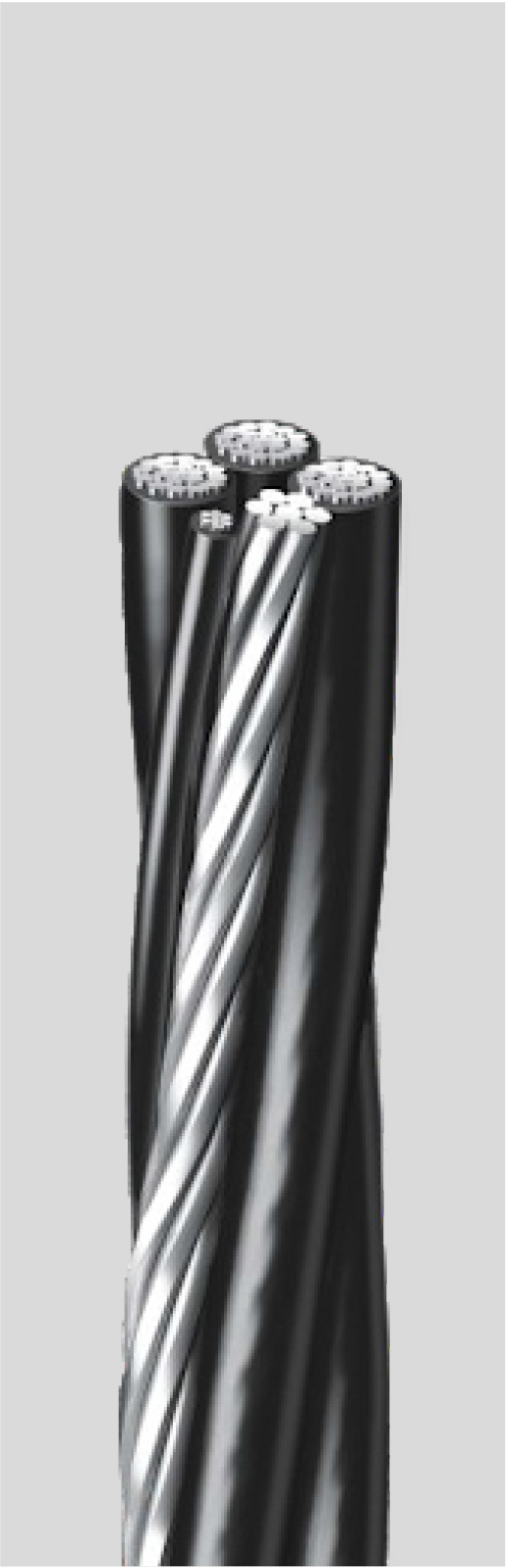

AERIAL BUNCHED CABLES

Application

Outdoor distribution in Rural or residential areas Offers cost effective safer and reliable cable for reticulation.

Range

LT XLPE, AB cable or PE insulation

Standards	IS 14255, BS 7870-5, BS 625 HD 626,VDE 00276 P 626, IEC 60502 NF C 33-209
Voltage	600/1000V
Conductor	Hard Drawn Aluminium, alluminium alloy or copper

Insulation

Specially formulated for exposure to sunlight and outdoor application. LT XLPE or PE is loaded with carbon black MV cable insulated and screened cores are PVC sheathed.

Max Operating Temp

XLPE: Max 90°C , PVC or PE: Max 70°C

Construction

Insulated cores may be bundled together or laid up around high tensile insulated or bare messenger. If a messenger is provided; as the tension is taken by it, phase conductors can operate at maximum allowable conductor temperature.

Minimum Bending Radius

For LV 10 times & MV 15 times cable diameter

Solar Radiation

1000 W/ sq m
